Triton ULTRA connects to Hanwha Wisenet WAVE through direct HTTP events or through Triton Cloud and WAVE Sync. The integration brings sensor detections into WAVE’s notification and camera bookmark workflow, giving staff context for response and investigation.

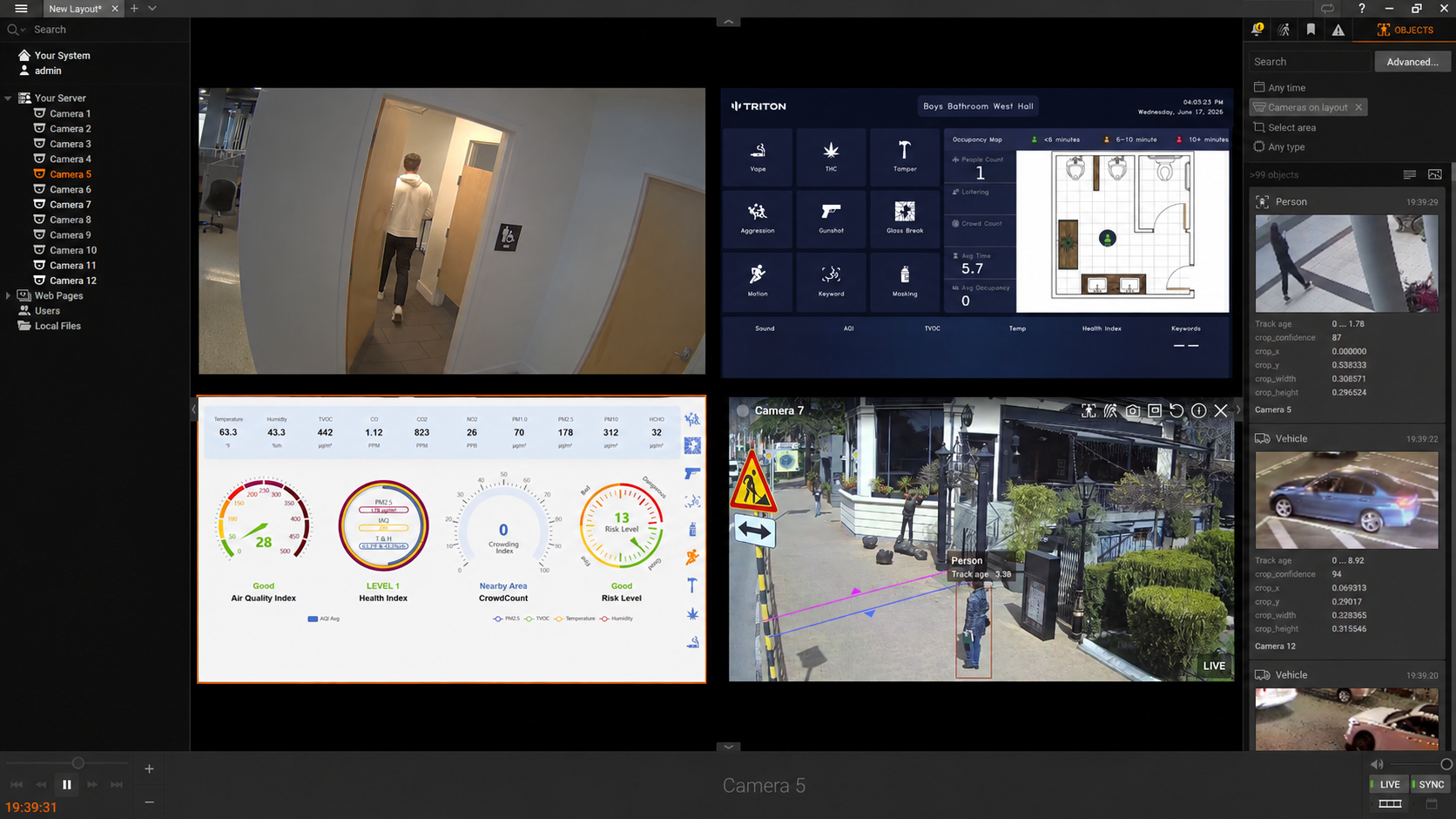

A camera covering a restroom entrance can be associated with the sensor inside. Staff can find activity around the time of a detection, while a separately configured live occupancy view helps them assess what is happening in the room before responding.
.png)
Direct connection from Triton ULTRA
How it works: ULTRA sends HTTP messages to WAVE. Generic Event rules match the messages and run configured actions such as notifications, recording, or camera bookmarks.
Version-specific setup: The direct guide includes settings for WAVE 6.1.x. Follow the instructions appropriate for the installed version when configuring the event connection.
Triton Cloud + WAVE Sync
Connect the systems: Enable WAVE Sync for your WAVE system and configure the connection in Triton Cloud. WAVE Sync is required for this Cloud option.
Camera association: Map camera IDs to the corresponding sensors in Triton Cloud. Sensor events are delivered through WAVE Sync as bookmarks tied to the mapped cameras.
Review detections and monitor occupancy
Bookmarks give staff a starting point on the relevant camera timeline when investigating an event. ULTRA’s RTSP occupancy stream can also be added to WAVE for live viewing alongside camera feeds, supporting room checks between alerts.
Before you start: Select the direct or Cloud guide, configure the event types and camera associations, and test the response in WAVE. Confirm that the expected notification or bookmark appears for the intended sensor and camera.
Frequently Asked Questions
What is the difference between the connection options?
The direct connection uses WAVE Generic Events and configured actions. Triton Cloud uses WAVE Sync with camera mappings and bookmarks.
Is WAVE Sync required?
It is required for the Triton Cloud connection. The direct sensor setup uses a separate event configuration.
Where can staff review an incident?
In WAVE, using the associated events, bookmarks, and available camera footage.
Can staff view occupancy between alerts?
Add ULTRA’s RTSP occupancy stream to WAVE for live viewing alongside camera feeds.
Resources
Hanwha Wisenet WAVE – Triton ULTRA Integration Guide — full setup guide for the on-prem HTTP event path.
Hanwha Wisenet WAVE (WAVE Sync) – Triton Cloud Integration Guide — setup guide for WAVE Sync authentication, sensor-to-camera mapping, and event bookmarks.
Contact us if you're running a mixed environment or aren't sure which path fits.
